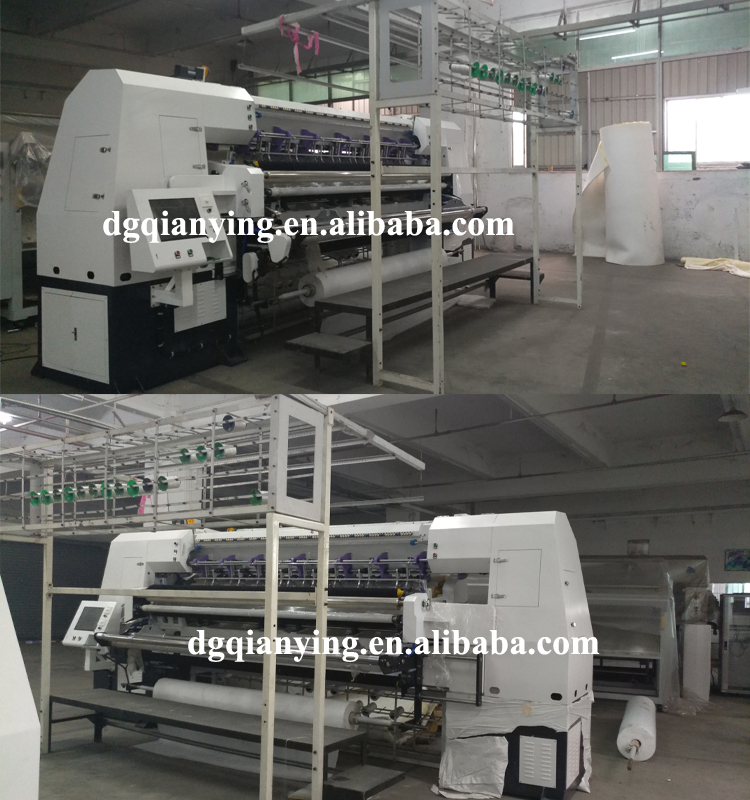

QYCS-3200B 2019 Hot-selling Chain stitch multi-needle mattress
border quilting machine
It is widely used for mattress panel, mattress pads, bedspreads, comforters, bedding,
blankets, seats covers, decoration, and more.
Technical parameters:
| Model | QYCS-3200B |
| Dimension(L*W*H) | 5400*1600*2300mm |
| Quilting Width | 2450mm |
| Needle Rows | 3 |
| Space between needle rows | 3”+2”, 3”+3” |
| Space between needle | 25.4mm |
| X-axis movement displacement | 305mm |
| Thickness of quilting | equal or less than 80mm |
| Stitch length | 1-12mm |
| Speed of operation | 60-230(m/hour) |
| Model of needle | 24/180,23/160 ,22/140, 21/130 |
| Quilting speed | 1200(r/min) |
| Voltage | 380V/50HZ 220V/60HZ |
| Total Power | 8KW |
| Gross Weight | 5500KG |
Main Features:
1. New aluminum alloy needle bar and press plate are controlled by a
double-swinging device without cam avoiding lubrication and
dirtying of material.
2. 360°Multi-span and independent patterns, automatic thread trimming
function.
3. Self-developed system, also supports quilting embroidering
mainstream DST format file, easy to operation.
4. Computer host adopt the most advanced embedded operating system and
self-developed motion control chip, Fast response speed, long
service life, good stability.
5. Spindle driven by servo motor, it is able to change speed and
positive inversion, cooperate with software to complete the slice
thread trimming function.
6. Adopt international advanced slice thread trimming function,
effectively reduce the probability thread jump, more stable.
7. Strong function of pattern-combining and multi-span( Tack&Jump)
quilting to enable you to quilt different patterns in each row in
the mattresses of different sizes.
8. High rigid machine body, high running speed, balance running, high
precision, lower rate jump threads, perfect pattern stitch.
9. Infrared safety protection and Auto-stop sensors detection
function.
Packaging & Shipping:
Our Service:
1. Pre-sales service
A. Inquiry and consulting support.
B. Visit our Factory.
C. Further consulting.& adopt customer advice.
2. After-sales service
A.Training how to instal the machine, training how to use the
machine.
B. Engineers available to service machinery overseas.
C. The machine maintain for one year, if the damages caused by
machine itself, excluding the man-made accidents, the broken parts
offered by seller in free of charge, but the transport cost for
buyer's account.
